W44x368 – W Shapes - American wide flange beams

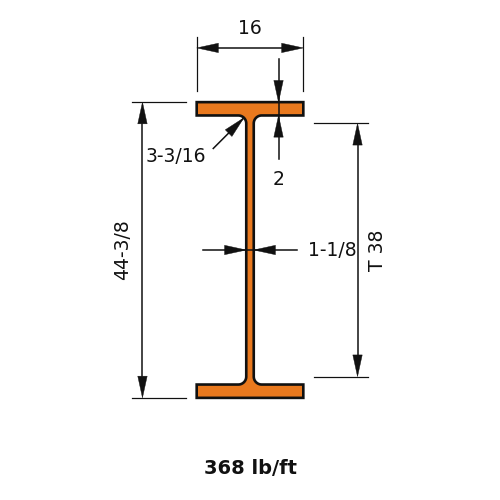

W44x368 is 44.4 in (1128 mm) deep with a 16 in (406 mm) wide flange, and weighs 368 lb/ft (547.6 kg/m).

Wide-flange (W) shapes are the most widely used structural steel section in North American construction — an I-shaped profile with flanges that are parallel-faced and constant in thickness, connected by a web running the full depth of the section. That shape puts the bulk of the material as far from the neutral axis as possible, giving W shapes an excellent strength-to-weight ratio for resisting bending. They're specified as beams, columns, and everything in between, across virtually every building type — from single-storey warehouses to high-rise frames — and in bridges, platforms, and heavy equipment supports. The wide range of depths and weights available in the AISC series means there's a W shape suited to almost any span or load, from light floor framing through to the heaviest deep columns carrying a high-rise's gravity loads.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

Dimensions

PropertyValue
Nominal Weight (lb/ft)368.0
Depth of Section (in)44.4
Width of Section (in)16.0
Web Thickness (in)1.1
Flange Thickness (in)1.97
Kdet Dimension (in)3.1875
T Dimension (in)38.0

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix (in⁴)34700
Zx (in³)1800
Sx (in³)1560
rx (in)17.9
Iy (in⁴)1350
Zy (in³)265
Sy (in³)169
ry (in)3.54
J (in⁴)100
Cw (in⁶)608000
rts (in)4.28
ho (in)42.4
