W36x350 – W Shapes - American wide flange beams

W36x350 is 38.6 in (980 mm) deep with a 12.6 in (320 mm) wide flange, and weighs 350 lb/ft (520.9 kg/m).

Wide-flange (W) shapes are the most widely used structural steel section in North American construction — an I-shaped profile with flanges that are parallel-faced and constant in thickness, connected by a web running the full depth of the section. That shape puts the bulk of the material as far from the neutral axis as possible, giving W shapes an excellent strength-to-weight ratio for resisting bending. They're specified as beams, columns, and everything in between, across virtually every building type — from single-storey warehouses to high-rise frames — and in bridges, platforms, and heavy equipment supports. The wide range of depths and weights available in the AISC series means there's a W shape suited to almost any span or load, from light floor framing through to the heaviest deep columns carrying a high-rise's gravity loads.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

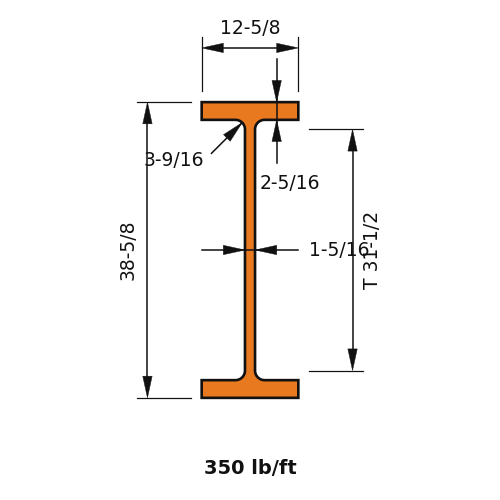

Dimensions

PropertyValue
Nominal Weight (lb/ft)350.0
Depth of Section (in)38.6
Width of Section (in)12.6
Web Thickness (in)1.3
Flange Thickness (in)2.32
Kdet Dimension (in)3.5625
T Dimension (in)31.5

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix (in⁴)23600
Zx (in³)1440
Sx (in³)1220
rx (in)15.1
Iy (in⁴)780
Zy (in³)199
Sy (in³)124
ry (in)2.75
J (in⁴)129
Cw (in⁶)257000
rts (in)3.41
ho (in)36.3
