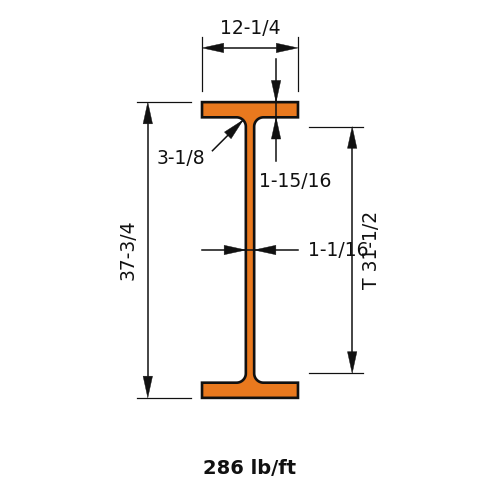

W36x286 – W Shapes - American wide flange beams

W36x286 is 37.8 in (960 mm) deep with a 12.3 in (312 mm) wide flange, and weighs 286 lb/ft (425.6 kg/m).

Wide-flange (W) shapes are the most widely used structural steel section in North American construction — an I-shaped profile with flanges that are parallel-faced and constant in thickness, connected by a web running the full depth of the section. That shape puts the bulk of the material as far from the neutral axis as possible, giving W shapes an excellent strength-to-weight ratio for resisting bending. They're specified as beams, columns, and everything in between, across virtually every building type — from single-storey warehouses to high-rise frames — and in bridges, platforms, and heavy equipment supports. The wide range of depths and weights available in the AISC series means there's a W shape suited to almost any span or load, from light floor framing through to the heaviest deep columns carrying a high-rise's gravity loads.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

Dimensions

PropertyValue
Nominal Weight (lb/ft)286.0
Depth of Section (in)37.8
Width of Section (in)12.3
Web Thickness (in)1.06
Flange Thickness (in)1.93
Kdet Dimension (in)3.125
T Dimension (in)31.5

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix (in⁴)18900
Zx (in³)1160
Sx (in³)1000
rx (in)15
Iy (in⁴)602
Zy (in³)156
Sy (in³)97.9
ry (in)2.68
J (in⁴)72.8
Cw (in⁶)194000
rts (in)3.29
ho (in)35.9

Full sortable table: Section properties table for this family
