PIPE26STD – Pipe Shapes

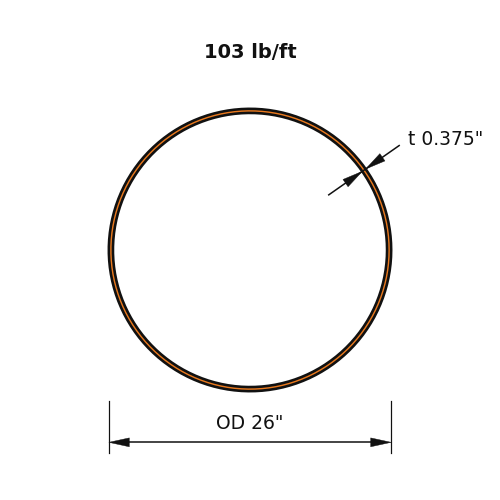

PIPE26STD is a standard weight pipe with an outside diameter of 26 in (660 mm), weighing 103 lb/ft (153.3 kg/m).

Pipe shapes are round hollow sections specified using the piping industry's own sizing convention — nominal pipe size and schedule (wall thickness) — rather than the outside-diameter-and-wall-thickness convention used for round HSS. Structurally they serve many of the same purposes as round HSS: columns, bollards, guardrail and handrail posts, and piling, particularly where a heavier wall thickness (schedule 80 and above) is wanted for extra corrosion allowance, impact resistance, or where a project's specification calls for pipe sizing specifically rather than HSS sizing.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

Dimensions

PropertyValue
Nominal Weight (lb/ft)103.0
Outside Diameter (in)26.0
Inside Diameter (in)25.3
Nominal Thickness (in)0.375

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix (in⁴)2320
Zx (in³)230
Sx (in³)178
rx (in)9.07
Iy (in⁴)2320
Zy (in³)230
Sy (in³)178
ry (in)9.07
J (in⁴)4640

Full sortable table: Section properties table for this family
