PIPE14STD – Pipe Shapes

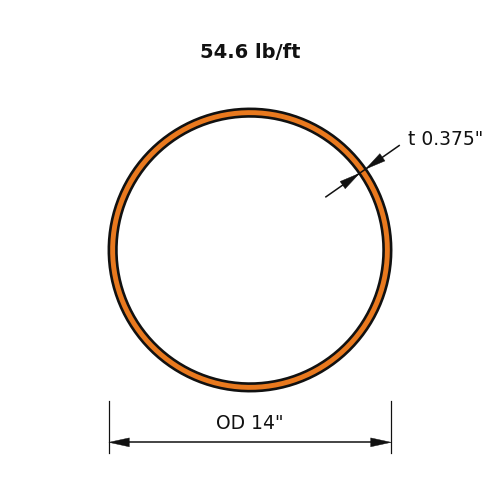

PIPE14STD is a standard weight pipe with an outside diameter of 14 in (356 mm), weighing 54.6 lb/ft (81.3 kg/m).

Pipe shapes are round hollow sections specified using the piping industry's own sizing convention — nominal pipe size and schedule (wall thickness) — rather than the outside-diameter-and-wall-thickness convention used for round HSS. Structurally they serve many of the same purposes as round HSS: columns, bollards, guardrail and handrail posts, and piling, particularly where a heavier wall thickness (schedule 80 and above) is wanted for extra corrosion allowance, impact resistance, or where a project's specification calls for pipe sizing specifically rather than HSS sizing.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

Dimensions

PropertyValue
Nominal Weight (lb/ft)54.6
Outside Diameter (in)14.0
Inside Diameter (in)13.3
Nominal Thickness (in)0.375

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix (in⁴)350
Zx (in³)65.2
Sx (in³)50
rx (in)4.83
Iy (in⁴)350
Zy (in³)65.2
Sy (in³)50
ry (in)4.83
J (in⁴)700

Full sortable table: Section properties table for this family
