L10x10x7/8 (L10x10x.875) – L Shapes - Equal Leg Angles

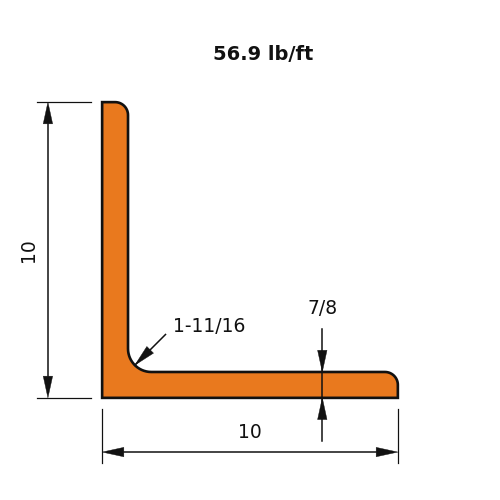

L10x10x7/8 is an equal-leg angle with 10 in (254 mm) legs, 7/8 in (22 mm) thick, weighing 56.9 lb/ft (84.7 kg/m).

Equal leg angles are one of the simplest and most versatile structural sections, with two legs of the same size meeting at a right angle. Their simplicity is their strength: angles are inexpensive, easy to cut, drill, bolt and weld, and useful almost anywhere a structure needs bracing, a connection element or a lightweight framing member. Common applications include diagonal bracing, truss web members, framing clips and connection angles, ladder and frame components, and general-purpose fabrication work where a full I-shaped or channel section would be unnecessary.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

Dimensions

PropertyValue
Nominal Weight (lb/ft)56.9
Leg Size (in)10.0
Leg Size (in)10.0
Nominal Thickness (in)0.875

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix (in⁴)158
Zx (in³)39.9
Sx (in³)21.9
rx (in)3.07
Iy (in⁴)158
Zy (in³)39.9
Sy (in³)21.9
ry (in)3.07
Iz (in⁴)62.8
rz (in)1.93
Sz (in³)15.9
J (in⁴)4.39
Cw (in⁶)32.5
ro (in)5.47
H (-)0.627

Full sortable table: Section properties table for this family
