L10x10x1-1/4 (L10x10x1.25) – L Shapes - Equal Leg Angles

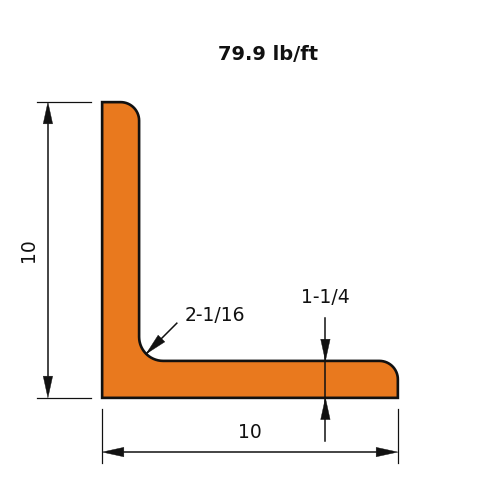

L10x10x1-1/4 is an equal-leg angle with 10 in (254 mm) legs, 1-1/4 in (32 mm) thick, weighing 79.9 lb/ft (118.9 kg/m).

Equal leg angles are one of the simplest and most versatile structural sections, with two legs of the same size meeting at a right angle. Their simplicity is their strength: angles are inexpensive, easy to cut, drill, bolt and weld, and useful almost anywhere a structure needs bracing, a connection element or a lightweight framing member. Common applications include diagonal bracing, truss web members, framing clips and connection angles, ladder and frame components, and general-purpose fabrication work where a full I-shaped or channel section would be unnecessary.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

Dimensions

PropertyValue
Nominal Weight (lb/ft)79.9
Leg Size (in)10.0
Leg Size (in)10.0
Nominal Thickness (in)1.25

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix (in⁴)213
Zx (in³)54.9
Sx (in³)30.2
rx (in)3.02
Iy (in⁴)213
Zy (in³)54.9
Sy (in³)30.2
ry (in)3.02
Iz (in⁴)85.4
rz (in)1.91
Sz (in³)20.5
J (in⁴)12.3
Cw (in⁶)89.4
ro (in)5.39
H (-)0.628
