HSS9-5/8x5/8 (HSS9.625x.625) – HSS Shapes - Round

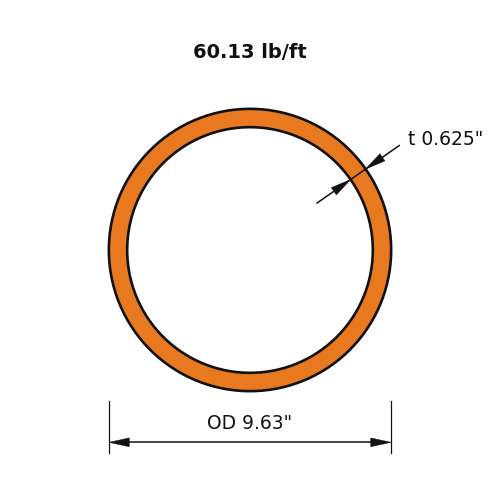

HSS9-5/8x5/8 is a 9.625 in (244 mm) diameter round hollow section with a 5/8 in (16 mm) nominal wall, weighing 60.13 lb/ft (89.5 kg/m).

Round HSS are closed, circular tube sections, sharing the torsional and biaxial strength advantages of rectangular HSS but in a circular profile that's often preferred where appearance matters — exposed columns, canopy supports, and architectural framing — as well as more utilitarian uses like handrail posts and bollards. The circular shape distributes compressive and torsional loads evenly in every direction, making round HSS a strong, materially efficient choice wherever a round column or post is wanted rather than a square or rectangular one.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

Dimensions

PropertyValue
Nominal Weight (lb/ft)60.13
Outside Diameter (in)9.625
Nominal Thickness (in)0.625

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix (in⁴)170
Zx (in³)47.6
Sx (in³)35.2
rx (in)3.2
Iy (in⁴)170
Zy (in³)47.6
Sy (in³)35.2
ry (in)3.2
J (in⁴)339
C (in³)70

Full sortable table: Section properties table for this family
