HSS28x3/4 (HSS28x.750) – HSS Shapes - Round

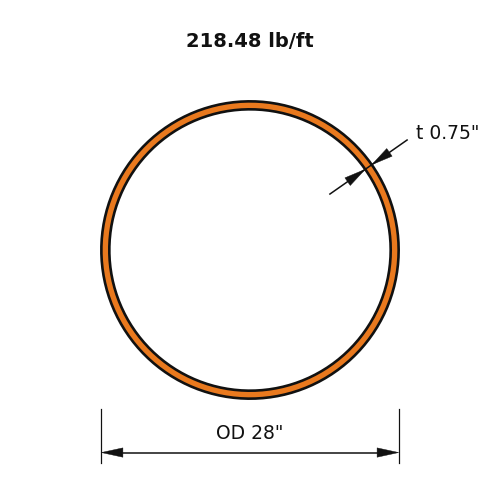

HSS28x3/4 is a 28 in (711 mm) diameter round hollow section with a 3/4 in (19 mm) nominal wall, weighing 218.48 lb/ft (325.1 kg/m).
Round HSS are closed, circular tube sections, sharing the torsional and biaxial strength advantages of rectangular HSS but in a circular profile that's often preferred where appearance matters — exposed columns, canopy supports, and architectural framing — as well as more utilitarian uses like handrail posts and bollards. The circular shape distributes compressive and torsional loads evenly in every direction, making round HSS a strong, materially efficient choice wherever a round column or post is wanted rather than a square or rectangular one.
AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!
Nearby Sections
Dimensions
| Property | Value |
|---|---|
| Nominal Weight (lb/ft) | 218.48 |
| Outside Diameter (in) | 28.0 |
| Nominal Thickness (in) | 0.75 |
Full sortable table: Dimensions table for this family
Section Properties
| Property | Value |
|---|---|
| Ix (in⁴) | 5580 |
| Zx (in³) | 520 |
| Sx (in³) | 398 |
| rx (in) | 9.66 |
| Iy (in⁴) | 5580 |
| Zy (in³) | 520 |
| Sy (in³) | 398 |
| ry (in) | 9.66 |
| J (in⁴) | 11200 |
| C (in³) | 796 |
Full sortable table: Section properties table for this family
