HSS28x1/2 (HSS28x.500) – HSS Shapes - Round

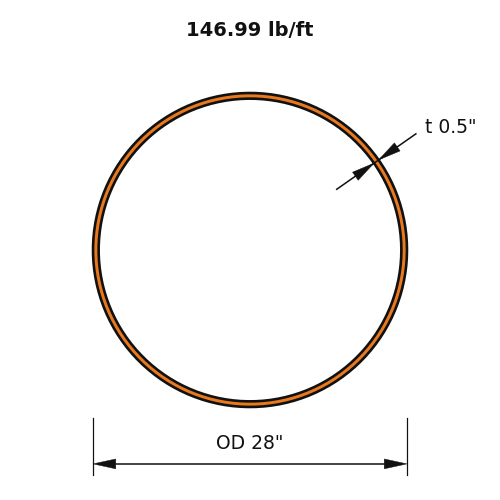

HSS28x1/2 is a 28 in (711 mm) diameter round hollow section with a 1/2 in (13 mm) nominal wall, weighing 146.99 lb/ft (218.7 kg/m).

Round HSS are closed, circular tube sections, sharing the torsional and biaxial strength advantages of rectangular HSS but in a circular profile that's often preferred where appearance matters — exposed columns, canopy supports, and architectural framing — as well as more utilitarian uses like handrail posts and bollards. The circular shape distributes compressive and torsional loads evenly in every direction, making round HSS a strong, materially efficient choice wherever a round column or post is wanted rather than a square or rectangular one.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

Dimensions

PropertyValue
Nominal Weight (lb/ft)146.99
Outside Diameter (in)28.0
Nominal Thickness (in)0.5

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix (in⁴)3810
Zx (in³)353
Sx (in³)272
rx (in)9.74
Iy (in⁴)3810
Zy (in³)353
Sy (in³)272
ry (in)9.74
J (in⁴)7630
C (in³)544

Full sortable table: Section properties table for this family
