HSS14x7/8 (HSS14x.875) – HSS Shapes - Round

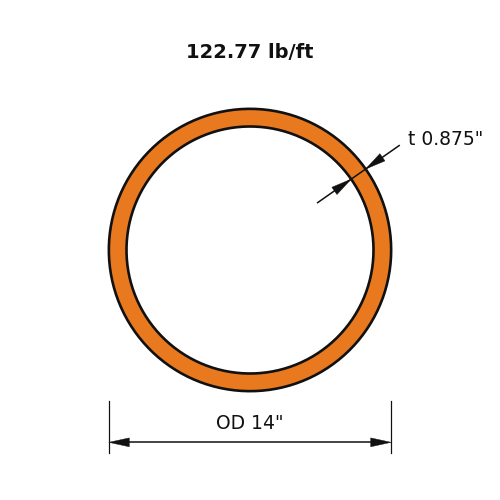

HSS14x7/8 is a 14 in (356 mm) diameter round hollow section with a 7/8 in (22 mm) nominal wall, weighing 122.77 lb/ft (182.7 kg/m).

Round HSS are closed, circular tube sections, sharing the torsional and biaxial strength advantages of rectangular HSS but in a circular profile that's often preferred where appearance matters — exposed columns, canopy supports, and architectural framing — as well as more utilitarian uses like handrail posts and bollards. The circular shape distributes compressive and torsional loads evenly in every direction, making round HSS a strong, materially efficient choice wherever a round column or post is wanted rather than a square or rectangular one.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

Dimensions

PropertyValue
Nominal Weight (lb/ft)122.77
Outside Diameter (in)14.0
Nominal Thickness (in)0.875

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix (in⁴)735
Zx (in³)142
Sx (in³)105
rx (in)4.67
Iy (in⁴)735
Zy (in³)142
Sy (in³)105
ry (in)4.67
J (in⁴)1470
C (in³)209

Full sortable table: Section properties table for this family
