WT20x327.5 – WT Shapes

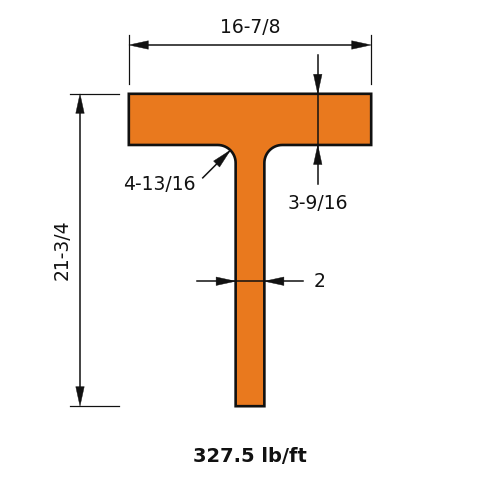

WT20x327.5 is a tee 21.8 in (554 mm) deep with a 16.9 in (429 mm) flange, weighing 327.5 lb/ft (487.4 kg/m).

WT shapes are structural tees produced by splitting a W shape lengthwise down the centre of its web, yielding a T-shaped cross-section with the flange width and thickness of the parent W shape. They're used as chords in trusses and open-web steel joists, as flanges welded to plate to build up girders and other custom sections, and anywhere a single wide bearing flange on a stem is more structurally efficient than a full I-shaped section — typically where only one face of the member needs to carry a bearing or connection load.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

Dimensions

PropertyValue
Nominal Weight (lb/ft)327.5
Depth of Section (in)21.8
Width of Section (in)16.9
Web Thickness (in)1.97
Flange Thickness (in)3.54
Kdet Dimension (in)4.8125

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix (in⁴)3730
Zx (in³)426
Sx (in³)234
rx (in)6.22
Iy (in⁴)1440
Zy (in³)271
Sy (in³)170
ry (in)3.86
J (in⁴)293
Cw (in⁶)3190
ro (in)8.38
H (-)0.763
