WT18x361.5 – WT Shapes

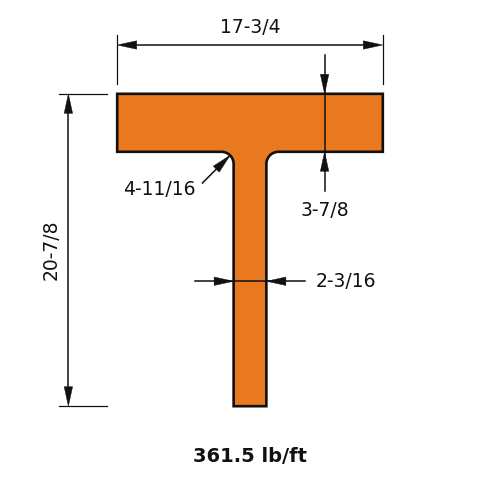

WT18x361.5 is a tee 20.9 in (531 mm) deep with a 17.8 in (452 mm) flange, weighing 361.5 lb/ft (538.0 kg/m).
WT shapes are structural tees produced by splitting a W shape lengthwise down the centre of its web, yielding a T-shaped cross-section with the flange width and thickness of the parent W shape. They're used as chords in trusses and open-web steel joists, as flanges welded to plate to build up girders and other custom sections, and anywhere a single wide bearing flange on a stem is more structurally efficient than a full I-shaped section — typically where only one face of the member needs to carry a bearing or connection load.
AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!
Nearby Sections
Dimensions
| Property | Value |
|---|---|
| Nominal Weight (lb/ft) | 361.5 |
| Depth of Section (in) | 20.9 |
| Width of Section (in) | 17.8 |
| Web Thickness (in) | 2.17 |
| Flange Thickness (in) | 3.9 |
| Kdet Dimension (in) | 4.6875 |
Full sortable table: Dimensions table for this family
Section Properties
| Property | Value |
|---|---|
| Ix (in⁴) | 3610 |
| Zx (in³) | 434 |
| Sx (in³) | 235 |
| rx (in) | 5.81 |
| Iy (in⁴) | 1850 |
| Zy (in³) | 329 |
| Sy (in³) | 208 |
| ry (in) | 4.16 |
| J (in⁴) | 390 |
| Cw (in⁶) | 4250 |
| ro (in) | 8 |
| H (-) | 0.798 |
Full sortable table: Section properties table for this family
