WT2.5x9.5 – WT Shapes

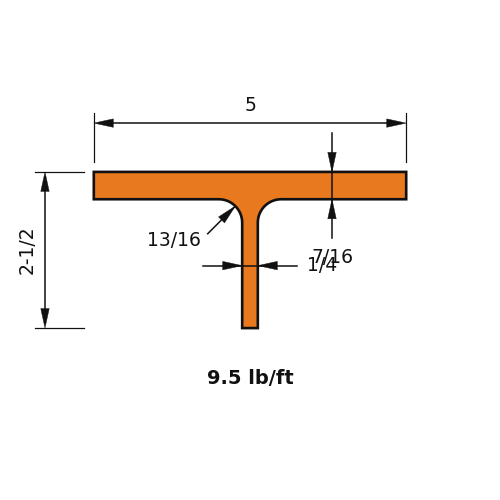

WT2.5x9.5 is a tee 2.58 in (66 mm) deep with a 5.03 in (128 mm) flange, weighing 9.5 lb/ft (14.1 kg/m).

WT shapes are structural tees produced by splitting a W shape lengthwise down the centre of its web, yielding a T-shaped cross-section with the flange width and thickness of the parent W shape. They're used as chords in trusses and open-web steel joists, as flanges welded to plate to build up girders and other custom sections, and anywhere a single wide bearing flange on a stem is more structurally efficient than a full I-shaped section — typically where only one face of the member needs to carry a bearing or connection load.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

Dimensions

PropertyValue
Nominal Weight (lb/ft)9.5
Depth of Section (in)2.58
Width of Section (in)5.03
Web Thickness (in)0.27
Flange Thickness (in)0.43
Kdet Dimension (in)0.8125

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix (in⁴)1.01
Zx (in³)0.97
Sx (in³)0.485
rx (in)0.604
Iy (in⁴)4.56
Zy (in³)2.76
Sy (in³)1.81
ry (in)1.28
J (in⁴)0.157
Cw (in⁶)0.0775
ro (in)1.44
H (-)0.964

Full sortable table: Section properties table for this family
