WT4x9 – WT Shapes

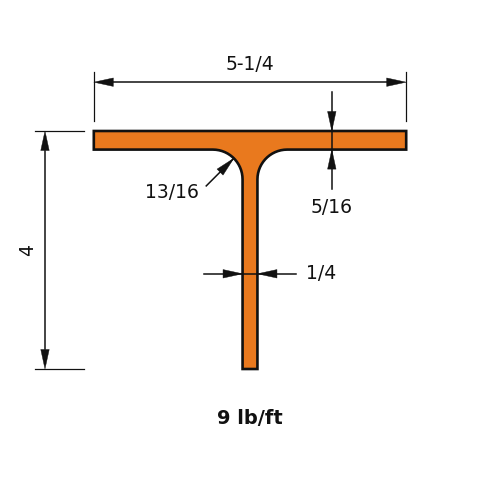

WT4x9 is a tee 4.07 in (103 mm) deep with a 5.25 in (133 mm) flange, weighing 9 lb/ft (13.4 kg/m).

WT shapes are structural tees produced by splitting a W shape lengthwise down the centre of its web, yielding a T-shaped cross-section with the flange width and thickness of the parent W shape. They're used as chords in trusses and open-web steel joists, as flanges welded to plate to build up girders and other custom sections, and anywhere a single wide bearing flange on a stem is more structurally efficient than a full I-shaped section — typically where only one face of the member needs to carry a bearing or connection load.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

Dimensions

PropertyValue
Nominal Weight (lb/ft)9.0
Depth of Section (in)4.07
Width of Section (in)5.25
Web Thickness (in)0.23
Flange Thickness (in)0.33
Kdet Dimension (in)0.8125

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix (in⁴)3.41
Zx (in³)1.86
Sx (in³)1.05
rx (in)1.14
Iy (in⁴)3.98
Zy (in³)2.33
Sy (in³)1.52
ry (in)1.23
J (in⁴)0.0855
Cw (in⁶)0.0562
ro (in)1.8
H (-)0.863

Full sortable table: Section properties table for this family
