WT4x12 – WT Shapes

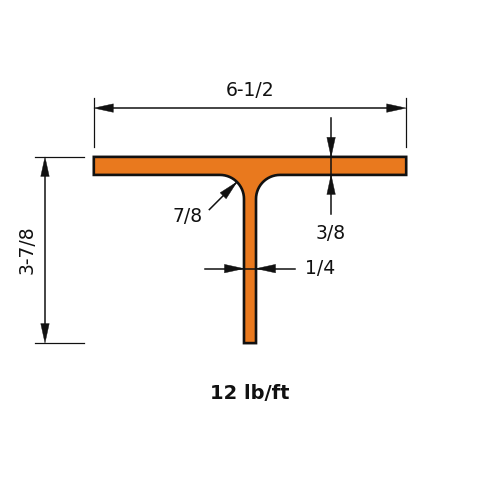

WT4x12 is a tee 3.97 in (101 mm) deep with a 6.5 in (165 mm) flange, weighing 12 lb/ft (17.9 kg/m).

WT shapes are structural tees produced by splitting a W shape lengthwise down the centre of its web, yielding a T-shaped cross-section with the flange width and thickness of the parent W shape. They're used as chords in trusses and open-web steel joists, as flanges welded to plate to build up girders and other custom sections, and anywhere a single wide bearing flange on a stem is more structurally efficient than a full I-shaped section — typically where only one face of the member needs to carry a bearing or connection load.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

Dimensions

PropertyValue
Nominal Weight (lb/ft)12.0
Depth of Section (in)3.97
Width of Section (in)6.5
Web Thickness (in)0.245
Flange Thickness (in)0.4
Kdet Dimension (in)0.875

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix (in⁴)3.53
Zx (in³)1.98
Sx (in³)1.08
rx (in)0.999
Iy (in⁴)9.14
Zy (in³)4.28
Sy (in³)2.81
ry (in)1.61
J (in⁴)0.173
Cw (in⁶)0.144
ro (in)1.96
H (-)0.936

Full sortable table: Section properties table for this family
