WT5x6 – WT Shapes

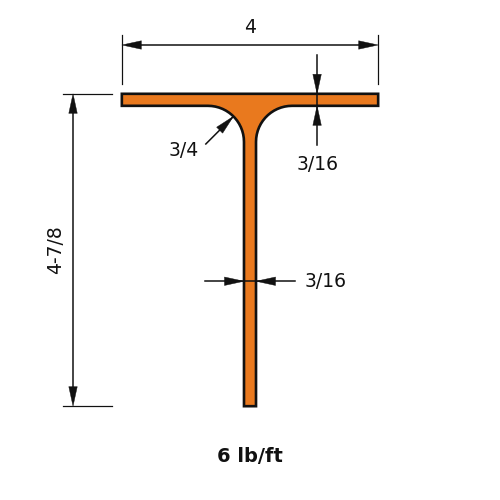

WT5x6 is a tee 4.94 in (125 mm) deep with a 3.96 in (101 mm) flange, weighing 6 lb/ft (8.9 kg/m).

WT shapes are structural tees produced by splitting a W shape lengthwise down the centre of its web, yielding a T-shaped cross-section with the flange width and thickness of the parent W shape. They're used as chords in trusses and open-web steel joists, as flanges welded to plate to build up girders and other custom sections, and anywhere a single wide bearing flange on a stem is more structurally efficient than a full I-shaped section — typically where only one face of the member needs to carry a bearing or connection load.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

Dimensions

PropertyValue
Nominal Weight (lb/ft)6.0
Depth of Section (in)4.94
Width of Section (in)3.96
Web Thickness (in)0.19
Flange Thickness (in)0.21
Kdet Dimension (in)0.75

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix (in⁴)4.35
Zx (in³)2.2
Sx (in³)1.22
rx (in)1.57
Iy (in⁴)1.09
Zy (in³)0.869
Sy (in³)0.551
ry (in)0.785
J (in⁴)0.0272
Cw (in⁶)0.0255
ro (in)2.16
H (-)0.661

Full sortable table: Section properties table for this family
