HSS Shapes - Square - HSS12x12x.625

Square HSS (Hollow Structural Sections) are closed, tube-shaped sections with equal depth and width. The closed profile gives excellent torsional stiffness and identical strength about both axes, a meaningful advantage over open shapes such as W or C sections. That symmetry makes square HSS a natural choice for columns, particularly where architecturally exposed structural steel is part of the design, and for posts, bracing and light framing where equal biaxial capacity and a clean profile matter more than bending capacity in one direction.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

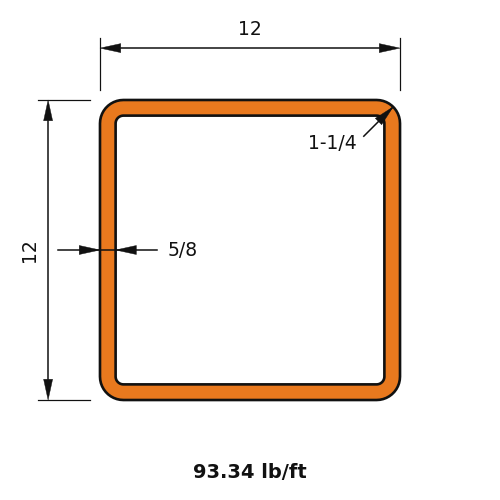

Dimensions

PropertyValue
Nominal Weight93.34
Depth of Section12.0
Depth of Flat Wall10.3
Width of Section12.0
Width of Flat Wall10.3
Nominal Thickness0.625

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix548
Zx109
Sx91.4
rx4.62
Iy548
Zy109
Sy91.4
ry4.62
J885
C151

Full sortable table: Section properties table for this family
