W8x31 – W Shapes - American wide flange beams

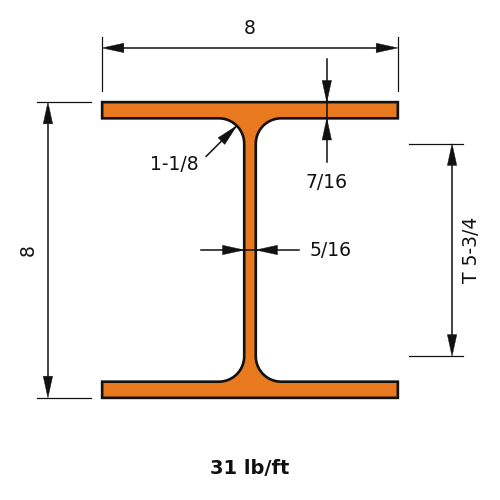

W8x31 is 8 in (203 mm) deep with an 8 in (203 mm) wide flange, and weighs 31 lb/ft (46.1 kg/m).

Wide-flange (W) shapes are the most widely used structural steel section in North American construction — an I-shaped profile with flanges that are parallel-faced and constant in thickness, connected by a web running the full depth of the section. That shape puts the bulk of the material as far from the neutral axis as possible, giving W shapes an excellent strength-to-weight ratio for resisting bending. They're specified as beams, columns, and everything in between, across virtually every building type — from single-storey warehouses to high-rise frames — and in bridges, platforms, and heavy equipment supports. The wide range of depths and weights available in the AISC series means there's a W shape suited to almost any span or load, from light floor framing through to the heaviest deep columns carrying a high-rise's gravity loads.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

Dimensions

PropertyValue
Nominal Weight (lb/ft)31.0
Depth of Section (in)8.0
Width of Section (in)8.0
Web Thickness (in)0.285
Flange Thickness (in)0.435
Kdet Dimension (in)1.125
T Dimension (in)5.75

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix (in⁴)110
Zx (in³)30.4
Sx (in³)27.5
rx (in)3.47
Iy (in⁴)37.1
Zy (in³)14.1
Sy (in³)9.27
ry (in)2.02
J (in⁴)0.536
Cw (in⁶)530
rts (in)2.26
ho (in)7.57
