W12x79 – W Shapes - American wide flange beams

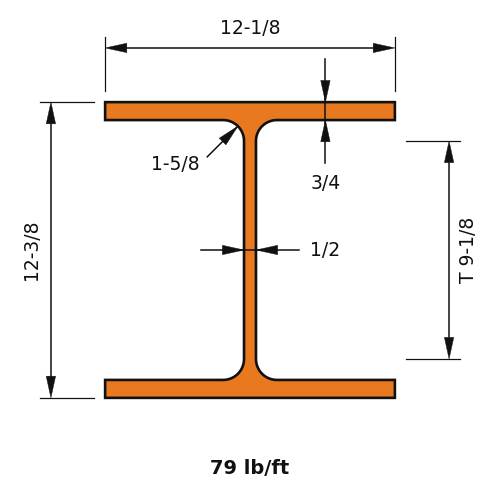

W12x79 is 12.4 in (315 mm) deep with a 12.1 in (307 mm) wide flange, and weighs 79 lb/ft (117.6 kg/m).

Wide-flange (W) shapes are the most widely used structural steel section in North American construction — an I-shaped profile with flanges that are parallel-faced and constant in thickness, connected by a web running the full depth of the section. That shape puts the bulk of the material as far from the neutral axis as possible, giving W shapes an excellent strength-to-weight ratio for resisting bending. They're specified as beams, columns, and everything in between, across virtually every building type — from single-storey warehouses to high-rise frames — and in bridges, platforms, and heavy equipment supports. The wide range of depths and weights available in the AISC series means there's a W shape suited to almost any span or load, from light floor framing through to the heaviest deep columns carrying a high-rise's gravity loads.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

Dimensions

PropertyValue
Nominal Weight (lb/ft)79.0
Depth of Section (in)12.4
Width of Section (in)12.1
Web Thickness (in)0.47
Flange Thickness (in)0.735
Kdet Dimension (in)1.625
T Dimension (in)9.125

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix (in⁴)662
Zx (in³)119
Sx (in³)107
rx (in)5.34
Iy (in⁴)216
Zy (in³)54.3
Sy (in³)35.8
ry (in)3.05
J (in⁴)3.84
Cw (in⁶)7330
rts (in)3.43
ho (in)11.7

Full sortable table: Section properties table for this family
