W12x152 – W Shapes - American wide flange beams

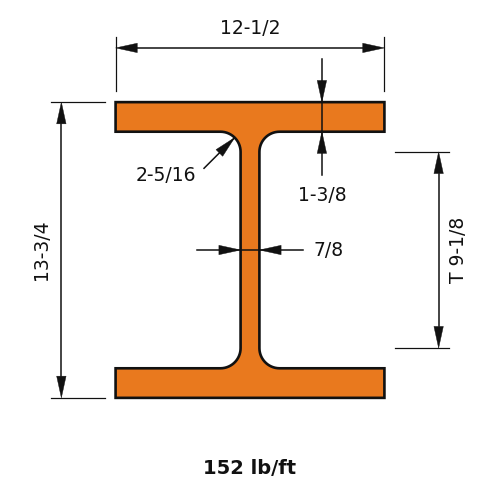

W12x152 is 13.7 in (348 mm) deep with a 12.5 in (318 mm) wide flange, and weighs 152 lb/ft (226.2 kg/m).

Wide-flange (W) shapes are the most widely used structural steel section in North American construction — an I-shaped profile with flanges that are parallel-faced and constant in thickness, connected by a web running the full depth of the section. That shape puts the bulk of the material as far from the neutral axis as possible, giving W shapes an excellent strength-to-weight ratio for resisting bending. They're specified as beams, columns, and everything in between, across virtually every building type — from single-storey warehouses to high-rise frames — and in bridges, platforms, and heavy equipment supports. The wide range of depths and weights available in the AISC series means there's a W shape suited to almost any span or load, from light floor framing through to the heaviest deep columns carrying a high-rise's gravity loads.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

Dimensions

PropertyValue
Nominal Weight (lb/ft)152.0
Depth of Section (in)13.7
Width of Section (in)12.5
Web Thickness (in)0.87
Flange Thickness (in)1.4
Kdet Dimension (in)2.3125
T Dimension (in)9.125

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix (in⁴)1430
Zx (in³)243
Sx (in³)209
rx (in)5.66
Iy (in⁴)454
Zy (in³)111
Sy (in³)72.8
ry (in)3.19
J (in⁴)25.8
Cw (in⁶)17200
rts (in)3.66
ho (in)12.3
