W12x210 – W Shapes - American wide flange beams

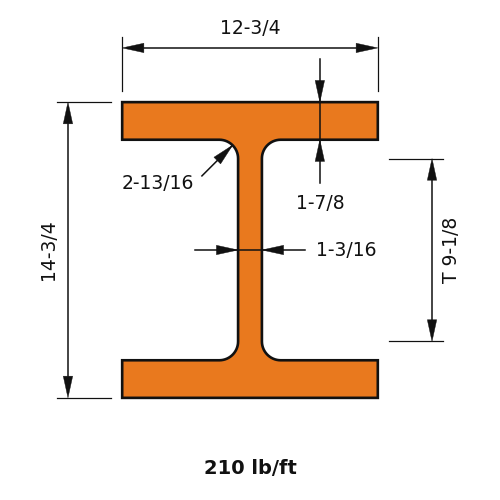

W12x210 is 14.7 in (373 mm) deep with a 12.8 in (325 mm) wide flange, and weighs 210 lb/ft (312.5 kg/m).
Wide-flange (W) shapes are the most widely used structural steel section in North American construction — an I-shaped profile with flanges that are parallel-faced and constant in thickness, connected by a web running the full depth of the section. That shape puts the bulk of the material as far from the neutral axis as possible, giving W shapes an excellent strength-to-weight ratio for resisting bending. They're specified as beams, columns, and everything in between, across virtually every building type — from single-storey warehouses to high-rise frames — and in bridges, platforms, and heavy equipment supports. The wide range of depths and weights available in the AISC series means there's a W shape suited to almost any span or load, from light floor framing through to the heaviest deep columns carrying a high-rise's gravity loads.
AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!
Nearby Sections
Dimensions
| Property | Value |
|---|---|
| Nominal Weight (lb/ft) | 210.0 |
| Depth of Section (in) | 14.7 |
| Width of Section (in) | 12.8 |
| Web Thickness (in) | 1.18 |
| Flange Thickness (in) | 1.9 |
| Kdet Dimension (in) | 2.8125 |
| T Dimension (in) | 9.125 |
Full sortable table: Dimensions table for this family
Section Properties
| Property | Value |
|---|---|
| Ix (in⁴) | 2140 |
| Zx (in³) | 348 |
| Sx (in³) | 292 |
| rx (in) | 5.89 |
| Iy (in⁴) | 664 |
| Zy (in³) | 159 |
| Sy (in³) | 104 |
| ry (in) | 3.28 |
| J (in⁴) | 64.7 |
| Cw (in⁶) | 27200 |
| rts (in) | 3.81 |
| ho (in) | 12.8 |
