W12x305 – W Shapes - American wide flange beams

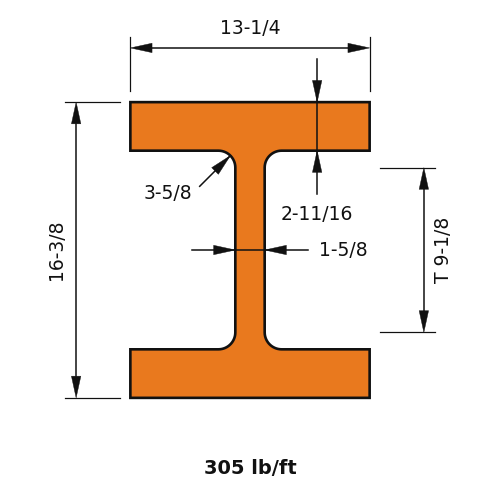

W12x305 is 16.3 in (414 mm) deep with a 13.2 in (335 mm) wide flange, and weighs 305 lb/ft (453.9 kg/m).

Wide-flange (W) shapes are the most widely used structural steel section in North American construction — an I-shaped profile with flanges that are parallel-faced and constant in thickness, connected by a web running the full depth of the section. That shape puts the bulk of the material as far from the neutral axis as possible, giving W shapes an excellent strength-to-weight ratio for resisting bending. They're specified as beams, columns, and everything in between, across virtually every building type — from single-storey warehouses to high-rise frames — and in bridges, platforms, and heavy equipment supports. The wide range of depths and weights available in the AISC series means there's a W shape suited to almost any span or load, from light floor framing through to the heaviest deep columns carrying a high-rise's gravity loads.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

Dimensions

PropertyValue
Nominal Weight (lb/ft)305.0
Depth of Section (in)16.3
Width of Section (in)13.2
Web Thickness (in)1.63
Flange Thickness (in)2.71
Kdet Dimension (in)3.625
T Dimension (in)9.125

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix (in⁴)3550
Zx (in³)537
Sx (in³)435
rx (in)6.29
Iy (in⁴)1050
Zy (in³)244
Sy (in³)159
ry (in)3.42
J (in⁴)185
Cw (in⁶)48600
rts (in)4.05
ho (in)13.6

Full sortable table: Section properties table for this family
