W14x30 – W Shapes - American wide flange beams

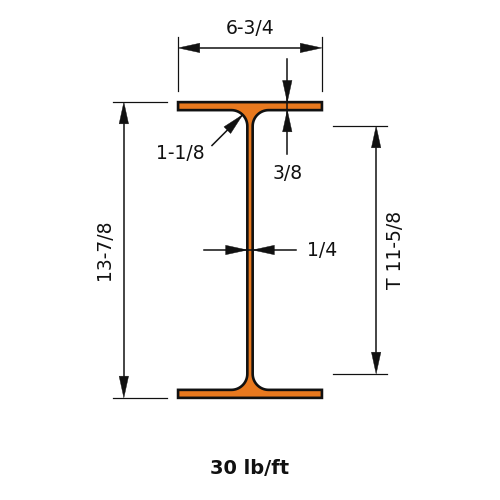

W14x30 is 13.8 in (351 mm) deep with a 6.73 in (171 mm) wide flange, and weighs 30 lb/ft (44.6 kg/m).

Wide-flange (W) shapes are the most widely used structural steel section in North American construction — an I-shaped profile with flanges that are parallel-faced and constant in thickness, connected by a web running the full depth of the section. That shape puts the bulk of the material as far from the neutral axis as possible, giving W shapes an excellent strength-to-weight ratio for resisting bending. They're specified as beams, columns, and everything in between, across virtually every building type — from single-storey warehouses to high-rise frames — and in bridges, platforms, and heavy equipment supports. The wide range of depths and weights available in the AISC series means there's a W shape suited to almost any span or load, from light floor framing through to the heaviest deep columns carrying a high-rise's gravity loads.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

Dimensions

PropertyValue
Nominal Weight (lb/ft)30.0
Depth of Section (in)13.8
Width of Section (in)6.73
Web Thickness (in)0.27
Flange Thickness (in)0.385
Kdet Dimension (in)1.125
T Dimension (in)11.625

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix (in⁴)291
Zx (in³)47.3
Sx (in³)42
rx (in)5.73
Iy (in⁴)19.6
Zy (in³)8.99
Sy (in³)5.82
ry (in)1.49
J (in⁴)0.38
Cw (in⁶)887
rts (in)1.77
ho (in)13.4
