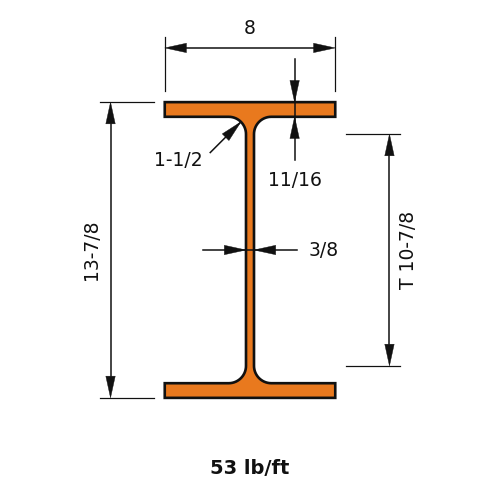

W14x53 – W Shapes - American wide flange beams

W14x53 is 13.9 in (353 mm) deep with an 8.06 in (205 mm) wide flange, and weighs 53 lb/ft (78.9 kg/m).

Wide-flange (W) shapes are the most widely used structural steel section in North American construction — an I-shaped profile with flanges that are parallel-faced and constant in thickness, connected by a web running the full depth of the section. That shape puts the bulk of the material as far from the neutral axis as possible, giving W shapes an excellent strength-to-weight ratio for resisting bending. They're specified as beams, columns, and everything in between, across virtually every building type — from single-storey warehouses to high-rise frames — and in bridges, platforms, and heavy equipment supports. The wide range of depths and weights available in the AISC series means there's a W shape suited to almost any span or load, from light floor framing through to the heaviest deep columns carrying a high-rise's gravity loads.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

Dimensions

PropertyValue
Nominal Weight (lb/ft)53.0
Depth of Section (in)13.9
Width of Section (in)8.06
Web Thickness (in)0.37
Flange Thickness (in)0.66
Kdet Dimension (in)1.5
T Dimension (in)10.875

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix (in⁴)541
Zx (in³)87.1
Sx (in³)77.8
rx (in)5.89
Iy (in⁴)57.7
Zy (in³)22
Sy (in³)14.3
ry (in)1.92
J (in⁴)1.94
Cw (in⁶)2540
rts (in)2.22
ho (in)13.2

Full sortable table: Section properties table for this family
